Zacatecas project
The company has recently completed trench sampling campaign at its San Acacio property. See press release: https://defiancesilver.com/news/defiance-silver-re…
The main mineralized structure on the Zacatecas Project is the Veta Grande vein system. The Veta Grande vein system has a dominant northwest strike and dips towards the southwest, on average at 65 degrees. The mapped strike extent of the Veta Grande vein system within the Property is approximately five kilometers and extends to depths of at least 400 m below surface as evidenced from underground development and drilling on the Property. The Veta Grande vein system is characterized by three main mineralization morphologies: fault-fill veins with polyphase breccias, vein splays with predominantly fault-fill vein textures, and veinlet array zones that frequently display banded textures.
No significant recent surface sampling has been completed on the Veta Grande surface exposure, and as a result of years of surface mining activities at the San Acacio mine on the Veta Grande vein, very little information is available on the grade and thickness of the vein system at surface, or what the lateral strike extent is, particularly between the significant historical surface mining operations.
Many of the trenches from pre-2008, were slumped or damaged by subsequent exploration programs that included numerous drill roads over the old trenches. Also, during period of low exploration, small scale illegal miners would often dig in the exposed trenches and remove mineralization from the Veta Grande which had been previously exposed in the old trenches. Defiance therefore determined that new trenching needed to be completed as the old trenches could not be resampled nor could the old samples be located to be re-analyzed. The purpose of the trenching was both confirming the historical samples but also linking the pits with current geochemistry as well as geology. The work also potentially gives confidence to the near surface tonnage potential also while demonstrating continuity between the large historical open pits (Almaden, San Jose, Esperanza, Guadalupe).
Trenching Procedures
The trenches were selected based on the presence of visible mineralized veins and breccias, alteration and geology. Different methods of excavation were used, depending on accessibility, topography and geology. Where it was possible, a backhoe was use for excavation, and in inaccessible areas, the trenches were dug by hand using pick and shovel. Samples were either cut by diamond saw or using a rock hammer and a chisel. along the width of the exposed vein or host rocks. The Nov 14th 2025 News Release reports exclusively intact veins, breccias and rock material although waste debris was also sampled in some of the trenches. The waste debris was analyzed however, those results were not utilized in any of the vein widths discussed in the Nov 14th 2025 News Release.
The QA/QC protocol used for core sampling was adapted for channel sampling. Each trench is referenced to a high-precision GPS control point. The length, azimuth and dip of each of the samples were surveyed for display purposes. Plastic pick and shovels were used to collect and place the sample material into plastic bags. Features such as mineralogy, alteration and geology among others were captured for each of the samples. The last step was the shipment of samples to the laboratory for geochemical analysis.
Discussion of Quality Assurance/Quality Control (QAQC) and Analytical Procedures
QAQC for Defiance trench sampling (2024-2025): Samples were selected based on the lithology, alteration, and mineralization characteristics; sample size averaged 3.7 kg. At least one blank, one standard, and one duplicate were included within every 20 samples. Standard materials are certified reference materials (CRMs) from OREAS and CDN; the suite of standards contains a range of Ag, Au, Cu, Pb, and Zn values. Blanks and standards have been used to confirm the validity of the analytical results.
Samples were analyzed by ALS Limited. Sample preparation was performed at their Zacatecas, Mexico, prep facility, and analyses were performed at the Vancouver, Canada, analytical facility. All elements except Au and Hg were analyzed by a multi-element geochemistry method utilizing a four-acid digestion followed by ICP-MS detection [ME-MS61m]; mercury was analyzed after a separate aqua regia digest by ICP-MS. Overlimit assays for Ag, Pb, and Zn were conducted using the OG62 method (multi-acid digest with ICP-AES/AAS finish). Gold was measured by fire-assay with an ICP-AES finish [50g sample, Au-ICP22].
Trenching Results
A summary of the sampling from the recently completed trenching program is as follows:
Item | Details | Average grade Ag ppm | Minimum grade Ag ppm | Maximum grade Ag ppm |
Number of trenches sampled | 152 | - | - | - |
Trenched meters | 1098 | - | - | - |
Number of channel samples collected | 1016 | - | - | - |
Total length of Veta Grande sampled | 2.1 km | - | - | - |
Veta Grande vein samples | 142 | 147.5 | 0.11 | 1480 |
Samples of unconsolidated trench debris | 60 | 205.36 | 7.95 | 1375 |

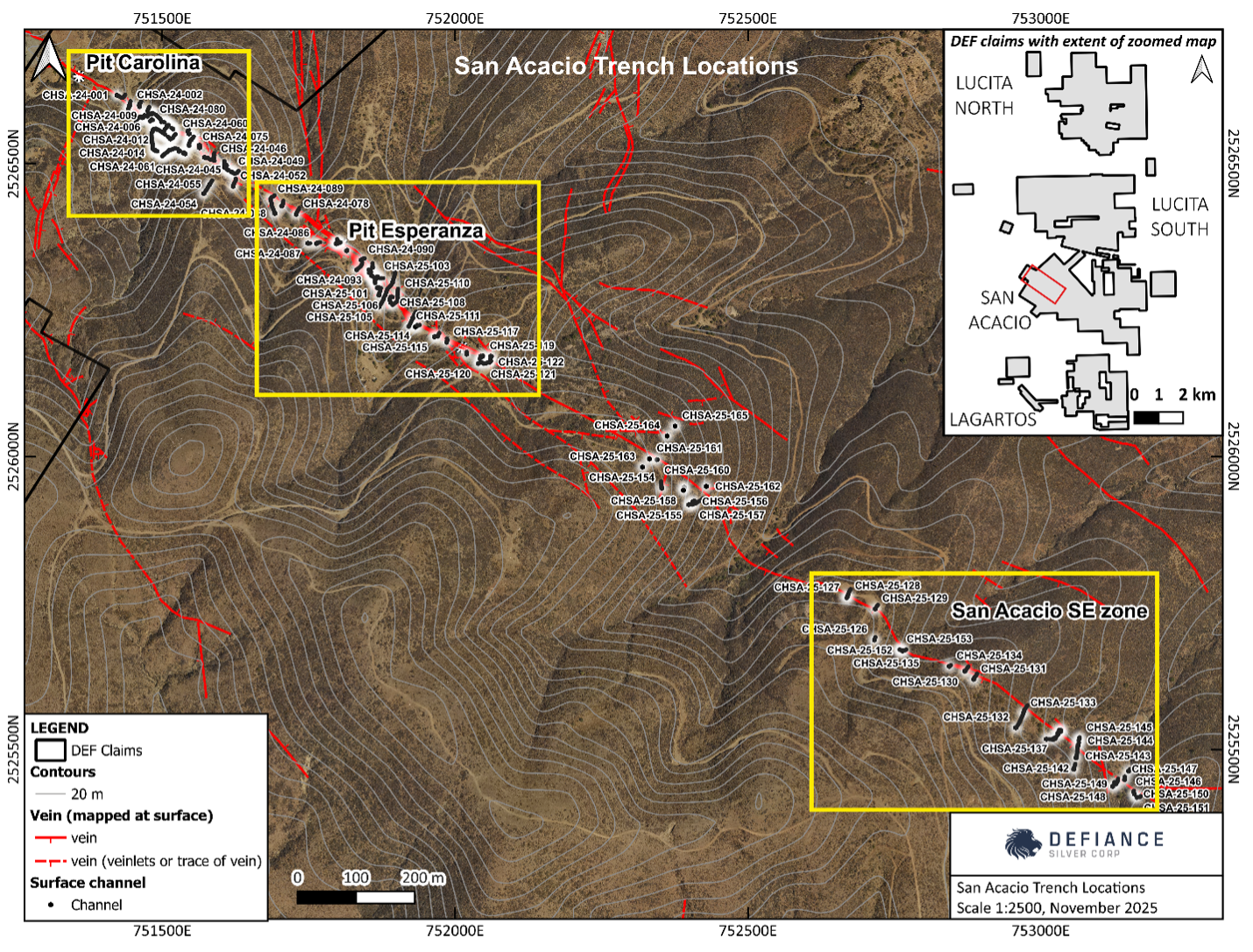

Figure 1. San Acacio property, showing the locations of the recently completed trenches
Individual channel sampling highlights from the trenching program include:
On November 14th, 2025, the Company released the highlights from the 2024-2025 trench sampling program. The following Table shows those highlights. Additional details from the trenching and sampling program are located in that news release. Full results from that sampling program are located at the bottom of this summary.
Trench | From (m) | To (m) | Length (m) | Ag ppm | Au ppm | Pb% | Zn% | Cu% |
CHSA-24-001 | 0.00 | 1.40 | 1.40 | 130.0 | 0.39 | 0.70 | 2.10 | 0.03 |
CHSA-24-005 | 0.00 | 4.53 | 4.53 | 495.1 | 0.12 | 0.65 | 0.22 | 0.04 |
including | 0.00 | 2.60 | 2.60 | 709.6 | 0.18 | 0.58 | 0.22 | 0.05 |
CHSA-24-006 | 0.87 | 2.29 | 1.42 | 499.0 | 0.44 | 1.08 | 1.11 | 0.04 |
CHSA-24-027 | 0.00 | 7.58 | 7.58 | 517.5 | 0.37 | 0.19 | 0.33 | 0.03 |
including | 0.00 | 3.68 | 3.68 | 736.23 | 0.56 | 0.25 | 0.36 | 0.02 |
CHSA-24-028 | 0.00 | 0.50 | 0.50 | 682.0 | 0.26 | 4.09 | 0.19 | 0.06 |
CHSA-24-029 | 0.00 | 0.30 | 0.30 | 1480.0 | 0.32 | 3.13 | 0.20 | 0.06 |
CHSA-24-030 | 0.00 | 1.45 | 1.45 | 1050.0 | 0.23 | 1.52 | 0.16 | 0.07 |
CHSA-24-031 | 0.00 | 1.70 | 1.70 | 507.4 | 3.27 | 3.35 | 1.07 | 0.18 |
CHSA-24-032 | 0.00 | 3.25 | 3.25 | 354.6 | 4.16 | 4.16 | 0.52 | 0.10 |
CHSA-24-033 | 0.00 | 2.20 | 2.20 | 243.5 | 0.14 | 1.25 | 0.21 | 0.05 |
CHSA-24-037 | 0.00 | 2.35 | 2.35 | 295.9 | 0.46 | 1.16 | 2.37 | 0.10 |
CHSA-24-040 | 0.00 | 5.35 | 5.35 | 113.8 | 0.07 | 1.30 | 0.30 | 0.05 |
CHSA-24-041 | 0.00 | 2.65 | 2.65 | 322.2 | 0.06 | 0.14 | 0.34 | 0.01 |
and | 3.65 | 6.55 | 2.90 | 256.1 | 0.04 | 0.07 | 0.14 | 0.00 |
CHSA-24-047 | 5.30 | 7.40 | 2.10 | 197.7 | 0.12 | 0.05 | 0.08 | 0.01 |
CHSA-24-048 | 0.00 | 4.75 | 4.75 | 181.5 | 0.33 | 0.30 | 0.25 | 0.02 |
CHSA-24-053 | 0.00 | 5.70 | 5.70 | 125.2 | 0.19 | 0.14 | 0.25 | 0.01 |
CHSA-24-056 | 0.00 | 5.67 | 5.67 | 240.1 | 0.19 | 0.17 | 0.44 | 0.01 |
CHSA-24-078 | 7.61 | 11.21 | 3.60 | 334.5 | 0.05 | 0.03 | 0.12 | 0.01 |
CHSA-24-083 | 0.00 | 4.70 | 4.70 | 143.9 | 0.02 | 0.05 | 0.12 | 0.00 |
CHSA-24-090 | 0.00 | 8.64 | 8.64 | 251.1 | 0.09 | 0.05 | 0.16 | 0.01 |
including | 4.77 | 6.27 | 1.50 | 954.2 | 0.45 | 0.20 | 0.36 | 0.01 |
CHSA-25-101 | 0.00 | 1.55 | 1.55 | 289.5 | 0.78 | 0.04 | 0.14 | 0.01 |
CHSA-25-103 | 0.00 | 2.30 | 2.30 | 169.1 | 0.05 | 0.11 | 0.32 | 0.01 |
CHSA-25-106 | 11.20 | 20.50 | 9.30 | 101.6 | 0.10 | 0.17 | 0.39 | 0.01 |
CHSA-25-107 | 14.15 | 18.40 | 4.25 | 407.8 | 0.21 | 0.15 | 0.18 | 0.02 |
including | 16.25 | 17.65 | 1.40 | 1045.0 | 0.47 | 0.35 | 0.27 | 0.03 |
CHSA-25-110 | 0.00 | 10.40 | 10.40 | 110.1 | 0.35 | 0.20 | 0.08 | 0.01 |
including | 6.00 | 6.85 | 0.85 | 1155.0 | 4.12 | 2.31 | 0.24 | 0.02 |
CHSA-25-116 | 4.85 | 5.45 | 0.60 | 5180.0 | 4.85 | 0.74 | 0.08 | 0.01 |
CHSA-25-117 | 7.65 | 8.90 | 1.25 | 579.0 | 0.65 | 0.66 | 0.63 | 0.03 |
CHSA-25-119 | 0.00 | 2.70 | 2.70 | 257.8 | 0.18 | 0.19 | 0.20 | 0.02 |
including | 0.00 | 0.90 | 0.90 | 693.0 | 0.50 | 0.48 | 0.33 | 0.03 |
CHSA-25-122 | 4.80 | 7.20 | 2.40 | 259.0 | 0.09 | 0.07 | 0.15 | 0.01 |
CHSA-25-123 | 0.00 | 3.90 | 3.90 | 111.5 | 0.06 | 0.03 | 0.12 | 0.01 |
CHSA-25-130 | 3.10 | 8.95 | 5.85 | 103.9 | 0.94 | 2.66 | 0.01 | 0.04 |

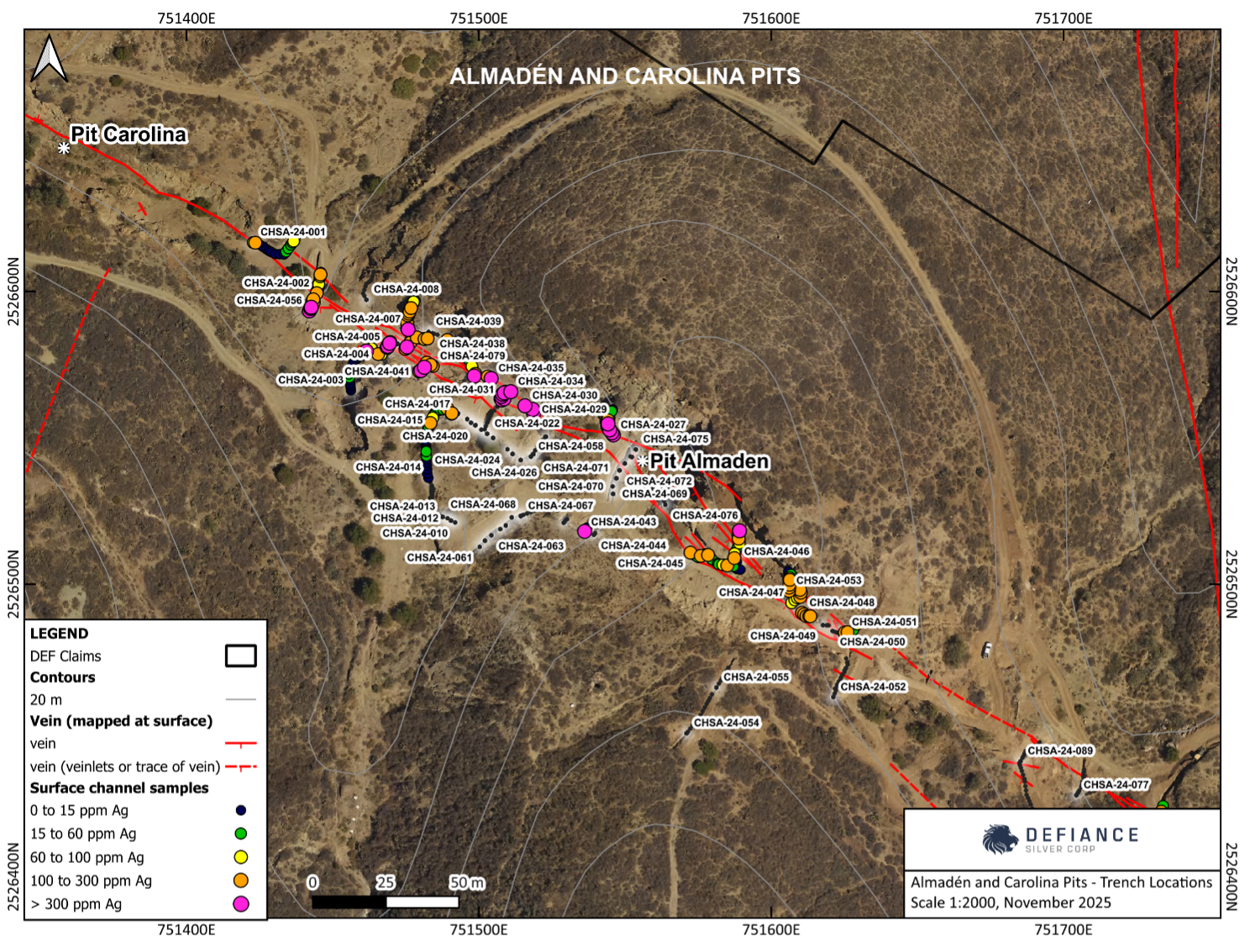

Figure 2. Almaden and Carolina area trench locations
A total of 76 trenches (from CHSA-24-01 to CHSA-24-76) were dug and sampled in the area known as the Almaden-Carolina pits. Most of the samples returned values over 60 g/t and up to 1480 Ag (Figure 2).

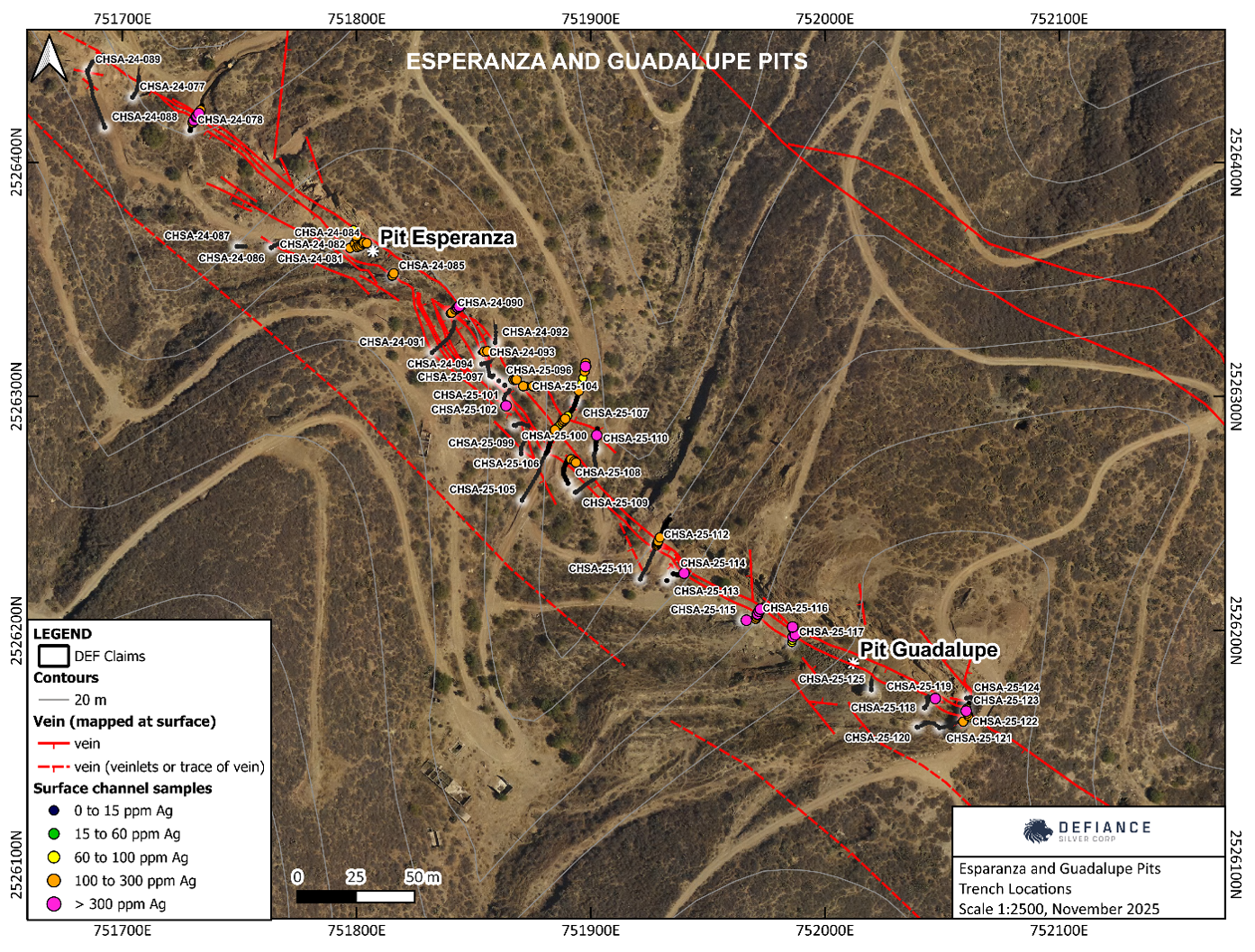

Figure 3. Esperanza and Guadalupe area trench locations
A total of 49 trenches (from CHSA-24-77 to CHSA-24-125) were dug and sampled in the area known as the Esperanza-Guadalupe pits. Most of the samples returned values over 60 g/t and up to 5180 g/t Ag (Figure 3).

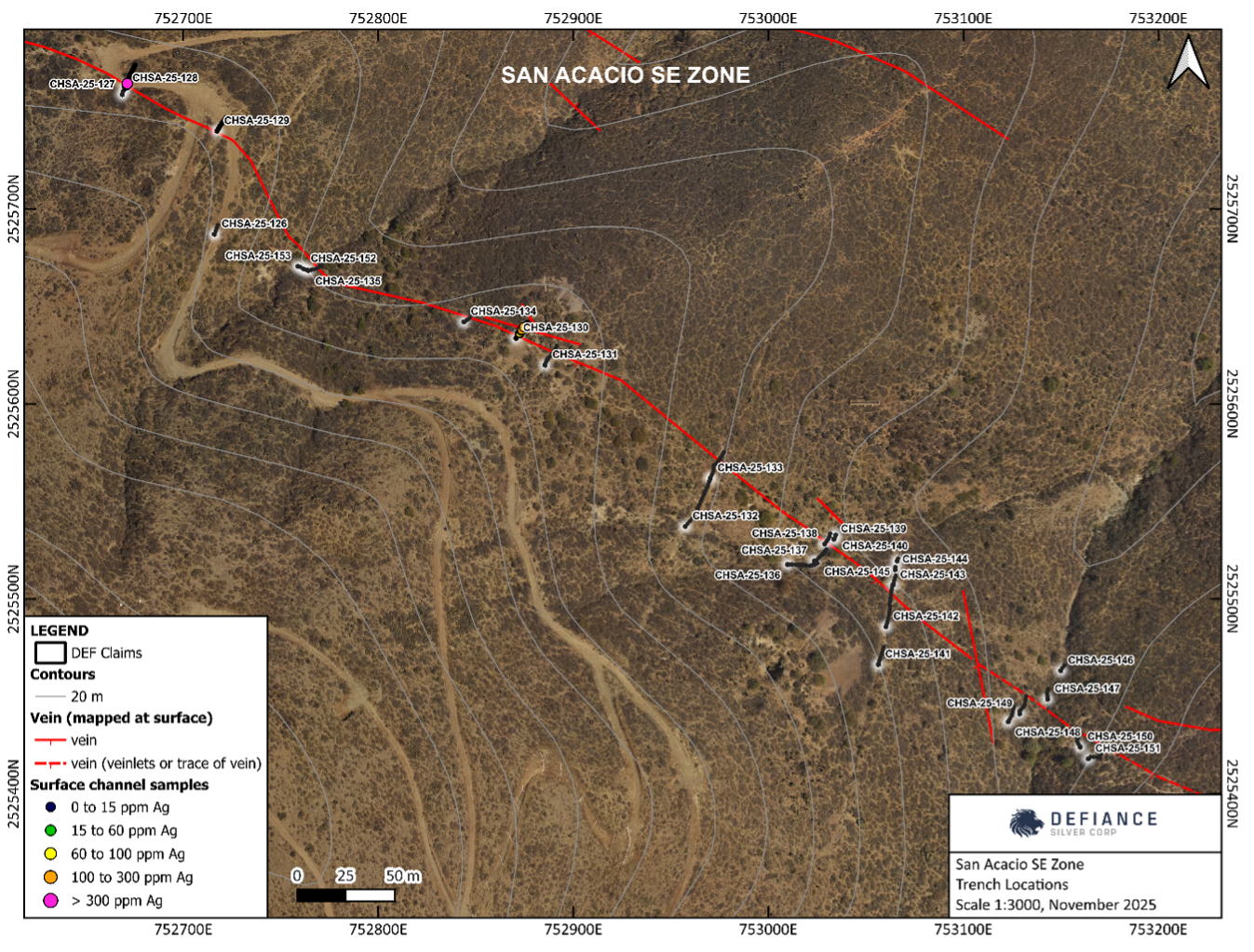

Figure 4. San Acacio SE area trench locations
A total of 28 trenches (from CHSA-25-126 to CHSA-24-153) were dug and sampled in the area known as San Acacio Southeast. Most of the samples returned concentration of less than 60 g/t Ag (Figure 4).
Full results from that sampling program
Trench ID | From (m) | To (m) | Length (m) | Ag ppm | Au ppm | Pb % | Zn % | Cu % | Material Type* |
CHSA-24-001 | 0 | 1.4 | 1.4 | 130.0 | 0.39 | 0.70 | 2.10 | 0.03 | a |
CHSA-24-002 | 0 | 3.52 | 3.52 | 107.4 | 0.31 | 0.08 | 0.37 | 0.01 | a |
Including | 5.77 | 7.44 | 1.67 | 111.8 | 0.08 | 0.07 | 0.32 | 0.01 | a |
CHSA-24-003 | 15.3 | 16.74 | 1.44 | 162.5 | 0.02 | 0.04 | 0.14 | 0.01 | b |
CHSA-24-004 | 0 | 5.39 | 5.39 | 213.7 | 0.07 | 0.10 | 0.26 | 0.01 | a,b |
CHSA-24-005 | 0 | 4.53 | 4.53 | 495.1 | 0.12 | 0.65 | 0.22 | 0.04 | a |
Including | 0 | 2.6 | 2.6 | 709.6 | 0.18 | 0.58 | 0.22 | 0.05 | a |
CHSA-24-006 | 0 | 5.49 | 5.49 | 213.0 | 0.22 | 0.53 | 0.81 | 0.03 | a,b |
Including | 0.87 | 2.29 | 1.42 | 499.0 | 0.44 | 1.08 | 1.11 | 0.04 | a |
CHSA-24-007 | 0 | 12.82 | 12.82 | 131.6 | 0.08 | 0.54 | 0.30 | 0.03 | a,b |
Including | 0 | 3.38 | 3.38 | 210.9 | 0.12 | 1.24 | 0.26 | 0.06 | a |
CHSA-24-008 | Values <100ppm Ag | ||||||||
CHSA-24-009 | 0 | 1.38 | 1.38 | 208.2 | 0.03 | 1.44 | 0.40 | 0.05 | a |
CHSA-24-010 | Values <100ppm Ag | ||||||||
CHSA-24-011 | Values <100ppm Ag | ||||||||
CHSA-24-012 | Values <100ppm Ag | ||||||||
CHSA-24-013 | Values <100ppm Ag | ||||||||
CHSA-24-014 | Values <100ppm Ag | ||||||||
CHSA-24-014 | 17.78 | 20.3 | 2.52 | 101.0 | 0.08 | 0.01 | 0.07 | 0.01 | a,b |
CHSA-24-015 | 8.5 | 9.8 | 1.3 | 122.0 | 0.04 | 0.01 | 0.16 | 0.01 | a |
CHSA-24-016 | 0 | 1.7 | 1.7 | 122.5 | 0.03 | 0.03 | 0.28 | 0.01 | a |
CHSA-24-017 | Values <100ppm Ag | ||||||||
CHSA-24-018 | Values <100ppm Ag | ||||||||
CHSA-24-019 | Values <100ppm Ag | ||||||||
CHSA-24-020 | Values <100ppm Ag | ||||||||
CHSA-24-020 | Values <100ppm Ag | ||||||||
CHSA-24-021 | Values <100ppm Ag | ||||||||
CHSA-24-022 | Values <100ppm Ag | ||||||||
CHSA-24-023 | Values <100ppm Ag | ||||||||
CHSA-24-024 | 0 | 1.4 | 1.4 | 676.0 | 0.18 | 0.07 | 0.21 | 0.01 | b |
CHSA-24-025 | 0 | 1.5 | 1.5 | 107.0 | 0.08 | 0.06 | 0.23 | 0.01 | b |
CHSA-24-026 | |||||||||
CHSA-24-027 | 0 | 7.58 | 7.58 | 517.5 | 0.37 | 0.19 | 0.33 | 0.03 | a |
Including | |||||||||
CHSA-24-027 | 0 | 3.68 | 3.68 | 736.2 | 0.56 | 0.25 | 0.36 | 0.02 | a |
CHSA-24-028 | 0 | 0.5 | 0.5 | 682.0 | 0.26 | 4.09 | 0.19 | 0.06 | a |
CHSA-24-029 | 0 | 0.3 | 0.3 | 1480.0 | 0.32 | 3.13 | 0.20 | 0.06 | a |
CHSA-24-030 | 0 | 1.45 | 1.45 | 1050.0 | 0.23 | 1.52 | 0.16 | 0.07 | a |
CHSA-24-031 | 0 | 1.7 | 1.7 | 507.4 | 3.27 | 3.35 | 1.07 | 0.18 | a |
CHSA-24-031 | |||||||||
CHSA-24-032 | 0 | 3.25 | 3.25 | 354.6 | 4.16 | 4.16 | 0.52 | 0.10 | a |
CHSA-24-033 | 0 | 2.2 | 2.2 | 243.5 | 0.14 | 1.25 | 0.21 | 0.05 | a |
CHSA-24-033 | |||||||||
CHSA-24-034 | 0 | 0.6 | 0.6 | 690.0 | 0.68 | 0.66 | 0.21 | 0.03 | a |
CHSA-24-035 | 0 | 0.8 | 0.8 | 325.0 | 0.19 | 0.49 | 0.08 | 0.02 | a |
CHSA-24-036 | 0 | 0.7 | 0.7 | 200.0 | 0.09 | 0.43 | 0.11 | 0.03 | a |
CHSA-24-037 | 0 | 6.85 | 6.85 | 136.1 | 0.19 | 0.48 | 3.20 | 0.07 | a,b |
Including | 0 | 2.35 | 2.35 | 295.9 | 0.46 | 1.16 | 2.37 | 0.10 | a |
CHSA-24-038 | Values <100ppm Ag | ||||||||
CHSA-24-039 | Values <100ppm Ag | ||||||||
CHSA-24-040 | 0 | 5.35 | 5.35 | 113.8 | 0.07 | 1.30 | 0.30 | 0.05 | a |
CHSA-24-041 | 0 | 6.55 | 6.55 | 270.2 | 0.05 | 0.10 | 0.26 | 0.01 | a,b |
Including | 1.25 | 4.35 | 3.1 | 366.7 | 0.06 | 0.14 | 0.37 | 0.01 | a,b |
Including | 1.25 | 2.65 | 1.4 | 451.0 | 0.07 | 0.20 | 0.35 | 0.01 | a,b |
CHSA-24-042 | Values <100ppm Ag | ||||||||
CHSA-24-043 | 0 | 3 | 3 | 120.3 | 0.02 | 0.02 | 0.11 | 0.01 | a |
CHSA-24-044 | Values <100ppm Ag | ||||||||
CHSA-24-045 | 0 | 3 | 3 | 106.6 | 0.06 | 0.05 | 0.40 | 0.01 | a,b |
CHSA-24-045 | 13.3 | 15.75 | 2.45 | 115.3 | 0.03 | 0.02 | 0.24 | 0.01 | a,b |
CHSA-24-046 | 1.7 | 4.5 | 2.8 | 105.1 | 0.07 | 0.02 | 0.06 | 0.01 | a,b |
CHSA-24-047 | 0 | 7.4 | 7.4 | 122.2 | 0.09 | 0.05 | 0.19 | 0.02 | a,b |
Including | 5.3 | 7.4 | 2.1 | 197.7 | 0.12 | 0.05 | 0.08 | 0.01 | a |
CHSA-24-048 | 0 | 4.75 | 4.75 | 181.5 | 0.33 | 0.30 | 0.25 | 0.02 | a |
CHSA-24-049 | Values <100ppm Ag | ||||||||
CHSA-24-050 | Values <100ppm Ag | ||||||||
CHSA-24-051 | 0 | 3.15 | 3.15 | 141.6 | 0.07 | 0.08 | 0.17 | 0.01 | a,b |
CHSA-24-052 | Values <100ppm Ag | ||||||||
CHSA-24-053 | 0 | 5.7 | 5.7 | 125.2 | 0.19 | 0.14 | 0.25 | 0.01 | a |
CHSA-24-054 | Values <100ppm Ag | ||||||||
CHSA-24-055 | Values <100ppm Ag | ||||||||
CHSA-24-056 | 0 | 7.03 | 7.03 | 233.3 | 0.23 | 0.17 | 0.55 | 0.01 | a,b |
CHSA-24-056 | 0 | 1.9 | 1.9 | 454.7 | 0.07 | 0.10 | 0.48 | 0.01 | a |
CHSA-24-057 | 0 | 11.2 | 11.2 | 152.6 | 0.06 | 0.06 | 0.67 | 0.01 | a,b |
Including | 2.75 | 3.6 | 0.85 | 475.7 | 0.11 | 0.04 | 2.17 | 0.01 | a |
CHSA-24-058 | 1.2 | 9.98 | 8.78 | 134.1 | 0.14 | 0.18 | 0.28 | 0.02 | b |
CHSA-24-059 | 0 | 1.7 | 1.7 | 125.1 | 0.12 | 0.08 | 0.28 | 0.02 | b |
CHSA-24-060 | 0 | 1.1 | 1.1 | 163.0 | 0.13 | 0.32 | 0.34 | 0.05 | b |
CHSA-24-061 | 0 | 1.37 | 1.37 | 673.0 | 1.35 | 1.47 | 0.71 | 0.04 | b |
CHSA-24-062 | 0 | 1.25 | 1.25 | 392.2 | 0.57 | 0.52 | 0.79 | 0.04 | b |
CHSA-24-063 | Values < 100ppm Ag | ||||||||
CHSA-24-064 | 0 | 1.04 | 1.04 | 208.0 | 0.44 | 0.59 | 0.64 | 0.03 | b |
CHSA-24-065 | 0 | 1.15 | 1.15 | 203.0 | 1.02 | 4.06 | 2.31 | 0.17 | b |
CHSA-24-066 | 0 | 1.68 | 1.68 | 1145.0 | 0.87 | 1.57 | 3.13 | 0.13 | b |
CHSA-24-067 | Values <100ppm Ag | ||||||||
CHSA-24-068 | Values <100ppm Ag | ||||||||
CHSA-24-069 | Values <100ppm Ag | ||||||||
CHSA-24-070 | Values <100ppm Ag | ||||||||
CHSA-24-071 | Values <100ppm Ag | ||||||||
CHSA-24-072 | Values <100ppm Ag | ||||||||
CHSA-24-073 | Values <100ppm Ag | ||||||||
CHSA-24-074 | 0 | 2.3 | 2.3 | 108.1 | 0.07 | 0.04 | 0.15 | 0.01 | b |
CHSA-24-075 | Values <100ppm Ag | ||||||||
CHSA-24-076 | Values <100ppm Ag | ||||||||
CHSA-24-077 | Values <100ppm Ag | ||||||||
CHSA-24-078 | 0 | 14.36 | 14.36 | 146.0 | 0.02 | 0.01 | 0.09 | 0.01 | a,b |
Including | 7.61 | 11.21 | 3.6 | 334.5 | 0.05 | 0.03 | 0.12 | 0.01 | a |
CHSA-24-079 | 0 | 0.75 | 0.75 | 225.0 | 0.01 | 0.04 | 0.06 | 0.00 | a |
CHSA-24-080 | 0 | 1.05 | 1.05 | 163.0 | 0.01 | 0.04 | 0.08 | 0.00 | a |
CHSA-24-081 | 0 | 1 | 1 | 216.0 | 0.05 | 0.04 | 0.22 | 0.01 | a |
CHSA-24-082 | 0 | 5.08 | 5.08 | 110.5 | 0.02 | 0.02 | 0.07 | 0.00 | a,b |
CHSA-24-083 | 0 | 4.7 | 4.7 | 143.9 | 0.02 | 0.05 | 0.12 | 0.00 | a |
CHSA-24-084 | 0 | 0.5 | 0.5 | 147.0 | 0.01 | 0.02 | 0.08 | 0.00 | a |
CHSA-24-085 | 0 | 2.98 | 2.98 | 124.8 | 0.01 | 0.02 | 0.08 | 0.01 | a,b |
CHSA-24-086 | Values <100ppm Ag | ||||||||
CHSA-24-087 | Values <100ppm Ag | ||||||||
CHSA-24-088 | Values <100ppm Ag | ||||||||
CHSA-24-089 | Values <100ppm Ag | ||||||||
CHSA-24-090 | 0 | 8.64 | 8.64 | 251.1 | 0.09 | 0.05 | 0.16 | 0.01 | a,b |
Including | 4.77 | 6.27 | 1.5 | 954.2 | 0.45 | 0.20 | 0.36 | 0.01 | a |
CHSA-24-091 | 0 | 6.3 | 6.3 | 124.4 | 0.02 | 0.02 | 0.06 | 0.01 | b |
Including | |||||||||
Including | 0 | 3.15 | 3.15 | 178.8 | 0.03 | 0.03 | 0.08 | 0.01 | b |
CHSA-24-092 | Values <100ppm Ag | ||||||||
CHSA-24-093 | 1.15 | 6.07 | 4.92 | 108.8 | 0.01 | 0.01 | 0.04 | 0.00 | a,b |
CHSA-24-094 | Values <100ppm Ag | ||||||||
CHSA-25-095 | Values <100ppm Ag | ||||||||
CHSA-25-096 | Values <100ppm Ag | ||||||||
CHSA-25-097 | Values <100ppm Ag | ||||||||
CHSA-25-098 | Values <100ppm Ag | ||||||||
CHSA-25-099 | Values <100ppm Ag | ||||||||
CHSA-25-100 | Values <100ppm Ag | ||||||||
CHSA-25-101 | 0 | 1.55 | 1.55 | 289.5 | 0.78 | 0.04 | 0.14 | 0.01 | a |
CHSA-25-102 | Values <100ppm Ag | ||||||||
CHSA-25-103 | 0 | 2.3 | 2.3 | 169.1 | 0.05 | 0.11 | 0.32 | 0.01 | a |
CHSA-25-104 | 2.65 | 7.75 | 5.1 | 103.4 | 0.12 | 0.24 | 0.24 | 0.01 | a,b |
CHSA-25-105 | Values <100ppm Ag | ||||||||
CHSA-25-106 | 11.2 | 20.5 | 9.3 | 101.6 | 0.10 | 0.17 | 0.39 | 0.01 | a,b |
Including | 16.9 | 18.5 | 1.6 | 185.8 | 0.32 | 0.74 | 0.34 | 0.03 | a,b |
CHSA-25-107 | 0 | 19.6 | 19.6 | 129.9 | 0.08 | 0.05 | 0.11 | 0.01 | a,b |
Including | 14.15 | 18.4 | 4.25 | 407.8 | 0.21 | 0.15 | 0.18 | 0.02 | a |
Including | 16.25 | 17.65 | 1.4 | 1045.0 | 0.47 | 0.35 | 0.27 | 0.03 | a |
CHSA-25-108 | 12.55 | 12.95 | 0.4 | 122.0 | 0.07 | 0.05 | 0.11 | 0.01 | a,b |
CHSA-25-109 | Values <100ppm Ag | ||||||||
CHSA-25-110 | 0 | 10.4 | 10.4 | 110.1 | 0.35 | 0.20 | 0.08 | 0.01 | a |
Including | 6 | 6.85 | 0.85 | 1155.0 | 4.12 | 2.31 | 0.24 | 0.02 | a |
CHSA-25-111 | Values <100ppm Ag | ||||||||
CHSA-25-112 | 0 | 4.5 | 4.5 | 102.5 | 0.05 | 0.09 | 0.15 | 0.01 | a,b |
Including | 0.65 | 1.8 | 1.15 | 163.8 | 0.04 | 0.08 | 0.09 | 0.01 | a |
CHSA-25-114 | 3.95 | 6.35 | 2.4 | 191.0 | 0.04 | 0.02 | 0.09 | 0.01 | a,b |
CHSA-25-115 | 0 | 5.5 | 5.5 | 272.3 | 0.03 | 0.07 | 0.21 | 0.02 | a,b |
Including | 2 | 5.5 | 3.5 | 426.3 | 0.04 | 0.12 | 0.30 | 0.01 | a |
CHSA-25-116 | 0 | 8.9 | 8.9 | 548.7 | 0.50 | 0.13 | 0.24 | 0.01 | a,b |
Including | 2.5 | 5.45 | 2.95 | 1439.9 | 1.33 | 0.28 | 0.27 | 0.01 | a,b |
Including | 4.85 | 5.45 | 0.6 | 5180.0 | 4.85 | 0.74 | 0.08 | 0.01 | a |
CHSA-25-117 | 0 | 8.9 | 8.9 | 253.5 | 0.13 | 0.18 | 0.30 | 0.01 | a,b |
Including | 7.65 | 8.9 | 1.25 | 579.0 | 0.65 | 0.66 | 0.63 | 0.03 | a |
CHSA-25-118 | Values <100ppm Ag | ||||||||
CHSA-25-119 | 0 | 2.7 | 2.7 | 257.8 | 0.18 | 0.19 | 0.20 | 0.02 | a |
Including | 0 | 0.9 | 0.9 | 693.0 | 0.50 | 0.48 | 0.33 | 0.03 | a |
CHSA-25-120 | Values <100ppm Ag | ||||||||
CHSA-25-121 | Values <100ppm Ag | ||||||||
CHSA-25-122 | 0 | 7.2 | 7.2 | 123.2 | 0.04 | 0.01 | 0.10 | 0.01 | a,b |
Including | 4.8 | 7.2 | 2.4 | 259.0 | 0.09 | 0.07 | 0.15 | 0.01 | a |
CHSA-25-123 | 0 | 3.9 | 3.9 | 111.5 | 0.06 | 0.03 | 0.12 | 0.01 | a,b |
CHSA-25-124 | Values <100ppm Ag | ||||||||
CHSA-25-125 | Values <100ppm Ag | ||||||||
CHSA-25-126 | Values <100ppm Ag | ||||||||
CHSA-25-127 | Values <100ppm Ag | ||||||||
CHSA-25-128 | 0 | 3.45 | 3.45 | 102.7 | 0.00 | 0.01 | 0.05 | 0.01 | a,b |
Including | 2.15 | 3.05 | 0.9 | 411.7 | 0.01 | 0.02 | 0.15 | 0.03 | a,b |
CHSA-25-129 | Values <100ppm Ag | ||||||||
CHSA-25-130 | 3.1 | 8.95 | 5.85 | 103.9 | 0.94 | 2.66 | 0.01 | 0.04 | a |
CHSA-25-131 | Values <100ppm Ag | ||||||||
CHSA-25-132 | Values <100ppm Ag | ||||||||
CHSA-25-133 | Values <100ppm Ag | ||||||||
CHSA-25-134 | Values <100ppm Ag | ||||||||
CHSA-25-135 | Values <100ppm Ag | ||||||||
CHSA-25-136 | Values <100ppm Ag | ||||||||
CHSA-25-137 | Values <100ppm Ag | ||||||||
CHSA-25-138 | Values <100ppm Ag | ||||||||
CHSA-25-139 | Values <100ppm Ag | ||||||||
CHSA-25-140 | Values <100ppm Ag | ||||||||
CHSA-25-141 | Values <100ppm Ag | ||||||||
CHSA-25-142 | Values <100ppm Ag | ||||||||
CHSA-25-143 | Values <100ppm Ag | ||||||||
CHSA-25-144 | Values <100ppm Ag | ||||||||
CHSA-25-145 | Values <100ppm Ag | ||||||||
CHSA-25-146 | Values <100ppm Ag | ||||||||
CHSA-25-147 | Values <100ppm Ag | ||||||||
CHSA-25-148 | Values <100ppm Ag | ||||||||
CHSA-25-149 | Values <100ppm Ag | ||||||||
CHSA-25-150 | Values <100ppm Ag | ||||||||
CHSA-25-151 | Values <100ppm Ag | ||||||||
CHSA-25-152 | Values <100ppm Ag | ||||||||
CHSA-25-153 | Values <100ppm Ag | ||||||||
* Material Type: | a- exposed vein | ||||||||
b- unconsolidated trench debris | |||||||||
